Identify your Garage Door Encoding Chip

Overview – Typical RF Remote Control PCB Layout

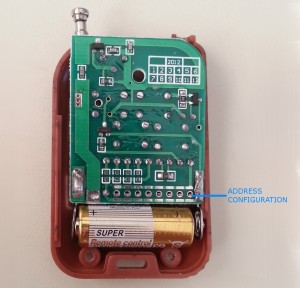

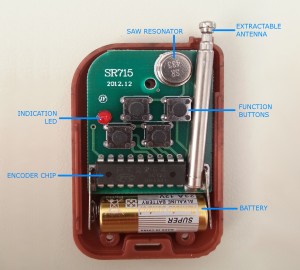

A typical RF remote control’s PCB is comprised of many electronic components, such as SAW resonator which controls the transmitting frequency and encoder IC which encodes the transmitting data. The typical inner photo of RF remote control is listed as follows.

PT2264_Description PT2264_back

Identify Operating Frequency

There are two types of RF remote controls based on operating frequency controlling circuit, one is the fixed frequency model, while the other one is the adjustable frequency model.

Fixed frequency model usually uses SAW (Surface Acoustic Wave) resonators to stabilize transmitting frequency, and is easier for operating frequency identification, while adjustable frequency model uses LC circuit, center frequency change is done using adjustable capacitor or adjustable inductor, and the operating frequency can be detected by spectrum or oscilloscope.

The following identification manual applies to fixed frequency model which usually used SAW (Surface Acoustic Wave) resonators and has its operating frequency printed on the enclosure of SAW component.

The detailed comparisons between fixed frequency model and adjustable frequency model are listed as follows.

Major Differences Between Fixed Frequency and Adjustable Frequency Model
Type Freq. Control Component Major Differences
Fixed Frequency SAW filter Reduced size and weight
High reliability and ruggedness
No tuning or readjustment required
Mass production capable
Adjustable Frequency Adjustable Ceramic Capacitor Adjustable frequency from 290MHz to 480MHz
Frequency deviates after long time using

NOTE: Fixed frequency model utilizing SAW filter is strongly recommended since it has performance and stability advantages over adjustable frequency model which utilizes adjustable ceramic capacitor or adjustable inductor.

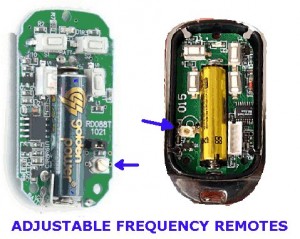

Adjustable Frequency Remote

Identify Encoding Type

There are basically three encoding types in RF remote control field, which are fixed code, learning code and rolling code, encoding type is determined by the encoder IC the remote control is using. The detailed comparisons between three encoding types are listed as follows.

Fixed Code VS Learning Code VS Rolling Code Comparison
Type Typical IC Encoding Method Security Price
Fixed Code PT2262 Manual Encoding, using dip switch or soldering to set address code Low Low
Learning Code EV1527 Automatic Encoding, copying fixed code or learning code remote Medium Medium
Rolling Code HCS301 Automatic Encoding, using algorithm to generate different code every time High High

INFORMATION: Learning code remote control using EV1527 chip is also known as self-learning copy remote, which can copy fixed code or learning code remote controls face to face. Rolling code remote control is usually duplicated using remote control duplicator, the number of rolling code remote control which can be duplicated is also limited.

Chip Model & Encoding Type Corresponding Relationship
Chip Model Fixed Code Rolling Code Learning Code
[2240] PT2240
[2242] PT2242
[2260] PT2260
[2262] PT2262 / M3E / CT5062
[6010] HT6010 / HT6012 / HT6014 / SH312E
[H600] HT600 / HT680 / HT6187 / HT6270 / TT13 / PK10T
[5026] AX5026 / CT5026 / SMC5026
[5326] AX5326 / AX5326S
[8092] TT8092
[4134] MC4134 / MC1450 / SC4134
[918] SMC918
X
HCS301 / HCS300 / HCS200 X
EV1527 / FP527 / HT6P20B / HT6P20D X

NOTE: The encoder IC listed above are common encoder chips in the market, if you can’t find your chip in the list, you can ask the corresponding manufacturer for detailed information.

Remote_Types_Chips

Identify Oscillation Resistance

The oscillator resistor value determines the transmitting OSC frequency, a higher oscillator resistor value will result in a lower OSC frequency, thus a longer wavelength, which will make the receiver pickup the signal easier.

Oscillation Resistor Corresponding Sheet – PT2262 / PT2272 / Other Fixed Code IC

Oscillation Resistor Corresponding Table – PT2262 / PT2272 / Other Fixed Code IC
PT2262 PT2260 SC2260 CS5211 PT2272 / SC2272 / CS5212
4.7 M 1.2 M 12.0 M 4.3 M 820 K*
3.3 M X 9.1 M 3.0 M 680 K*
2.2 M X 6.2 M 2.0 M 390 K*
1.5 M X 4.3 M 1.4 M 270 K*
1.2 M X 3.3 M 1.1 M 200 K**

NOTE: * – Operates when PT2272’s Vcc is 5V to 15V ** – Operates when PT2272’s Vcc is 3V to 15V, which means when PT2272’s supply voltage is lower than 5V, you need to use a lower oscillator resistor value for both PT2262 and PT2272.

Oscillation Resistor Correspondence – EV1527 / Other Learning Code IC

EV1527 chip is a learning code IC which is widely used in self-learning copy remote or universal RF remote control duplicator. Self-learning copy remote can duplicate a fixed code or learning code RF remote control face-to-face(e.g. Garage Door Opener Remote Control), making it very popular in today’s market.

The typical oscillator resistor value of EV1527 chip is 300 K, 330 K, 360 K, 390 K and 430 K. Commonly an EV1527 chip with 300 K oscillator resistor can pair with PT2262 chip with oscillator resistor values ranging from 1.5 M to 4.7 M. That explains why self-learning copy remote can copy most fixed code and learning code RF remote controls in the market, regardless of the oscillator resistor they are using.
